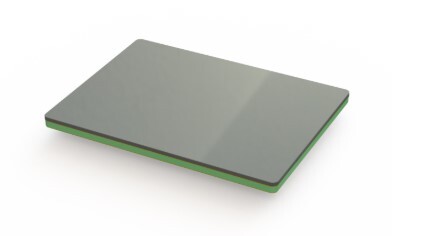

3" OEM Touchpad
Utilizing the latest and most advanced touch sensing technology, the TPM Series touchpad module is an extremely
high specification pointing device, ideal for the most demanding of cursor control applications. The device provides
both conventional X and Y-axis cursor movement with plug-and-play, multi-finger gesture support for enhanced user
interaction. The mutual-capacitance based tracking engine combines the benefits of solid state sensing (no moving
parts) with the precision, functionality and performance associated with the Cursor Controls product range.
The unit has been designed to be panel mounted as part of OEM keyboards and consoles
Features
- Solid state sensing technology – capacitive touch sensing tracking engine.
- Multi-finger gesture support
- Output: USB/PS2 (auto-select)
- Smooth operation in rugged environments
- Immunity to moisture, water and liquid contaminants
- Various overlay configurations available
- Custom connector options available
Typical Applications
- Industrial consoles
- Medical systems
- Marine systems
- Sound and lighting desks
- Video editing consoles
- Custom keyboard applications
- OEM custom solutions available
