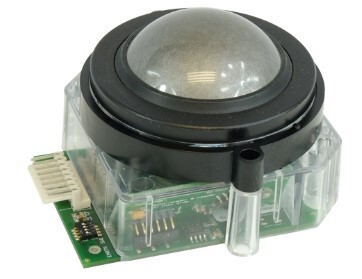

C50 Trackball
Utilizing the latest and most advanced laser tracking technology, the C50 Series laser Trackerball™ is an extremely
high specification, contact-less device, ideal for the most demanding of cursor control applications.
The laser tracking engine provides accurate cursor motion at all speeds and on virtually any ball, combining the
benefits of solid state sensing (no moving parts except the ball) with the aesthetics, functionality and performance
associated with the Cursor Controls product range.
The design incorporates a removable top ring as standard to allow for easy cleaning, decontamination, sterilisation
and maintenance - ensuring continued optimum performance and operation under the harshest of conditions.
The C50 Series trackballs are available with a variety of electrical outputs and tracking force options.

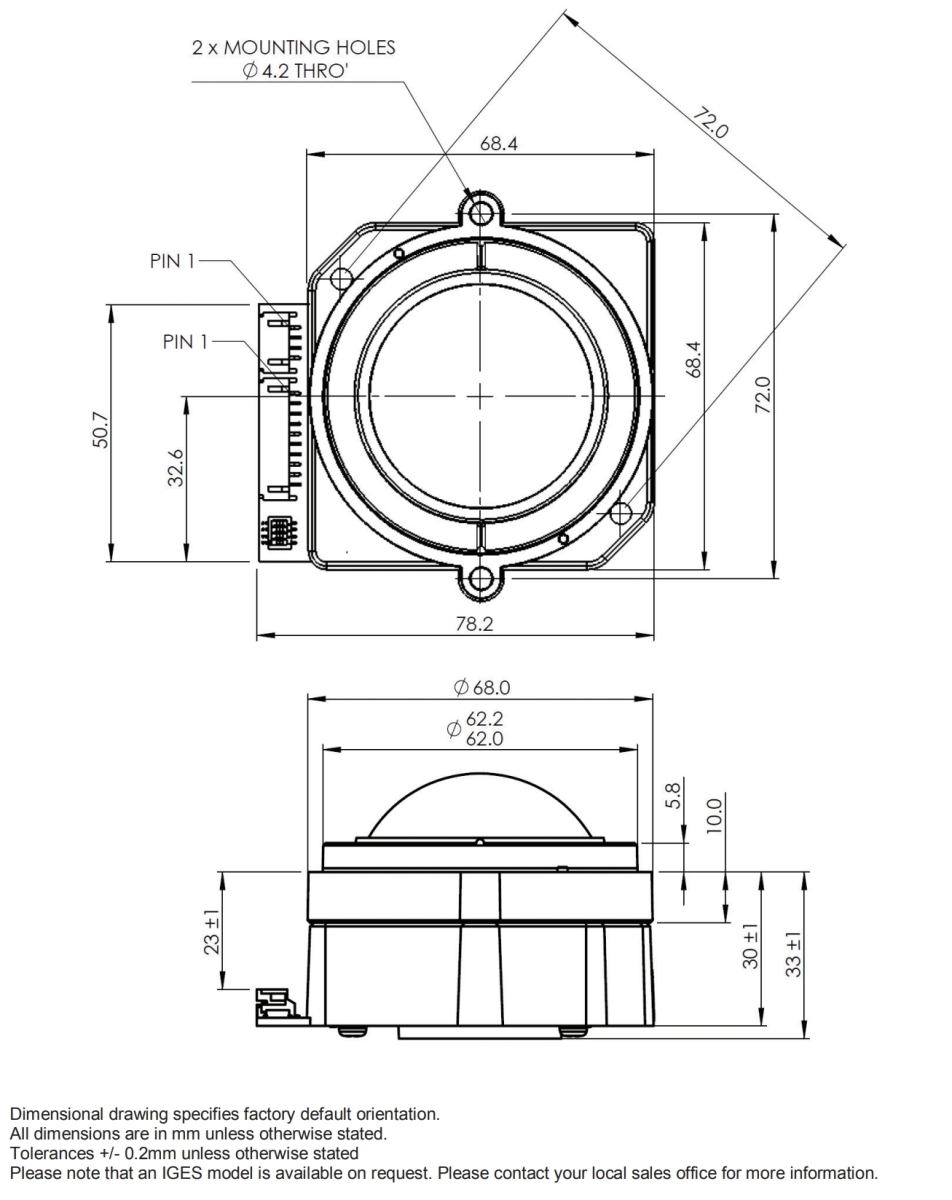

The trackball has been designed to be back of panel mounted as part of OEM keyboards and consoles
Features
- Solid state sensing technology – laser tracking engine
- Outputs: USB & PS2 (auto-select) or SUN Systems
- Smooth operation in rugged environments
- Various top plate configurations
- Custom connector options available
- Various ball colours available
- External Switch Connections (USB/PS2 Only)
Typical Applications
- Medical systems
- Marine systems
- Custom keyboard applications
- Industrial consoles
- OEM custom solutions available
