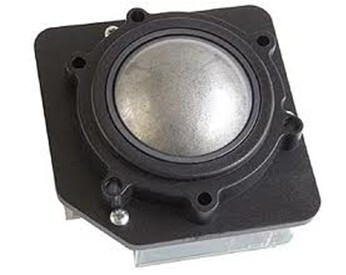

L50 Trackball
Utilizing the latest and most advanced infra-red optical tracking technology, the L50 Series Trackerball™ is an extremely high specification, contact-less device, ideal for the most demanding of cursor control applications.
The Infra-red optical tracking engine provides accurate cursor motion at all speeds, combining the benefits of solid state sensing (no moving parts except the ball) with the aesthetics, functionality and performance associated with the Cursor Controls product range.
L50 Series trackballs are available with a variety of electrical outputs, tracking force options, and sealing capabilities up to IP68.
The solid state design allows the device to be subjected to extreme conditions and provides the user with the ability to wash down, decontaminate, and sterilise, making it the ideal trackball for a wide range of demanding applications and environments.
The unit has been designed to be back of panel mounted as part of OEM keyboards and consoles.
Features
- Solid state sensing technology – Infra-red optical tracking engine
- Sealing up to IP68
- Outputs: USB & PS/2 (auto-select)
- Smooth operation in rugged environments
- Various top plate configurations providing sealing and tracking force options
- Custom connector options
- Self draining and back flushing features (optional)
- Various ball colours
- VX3™ – integrated zoom feature for scroll wheel functionality
Typical Applications
- Medical systems
- Marine systems
- Custom keyboard applications
- Industrial consoles
- OEM custom solutions available
