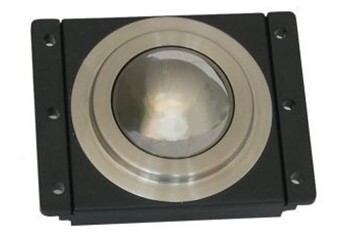

P38 Standard Stainless Steel
The P38 Series are high specification, professional trackballs for use in demanding environments.
High-grade stainless steel shafts and bearings ensure a solid and precise pointer control while the patented floating seal technology limits ingress of aqueous solutions and particulates.
The ball and trim are made from high quality stainless steel and provide extra protection in public access points where vandal attacks are commonplace. The optional anti-vandal kit also provides protection from high impacts of up to 10 Joules.

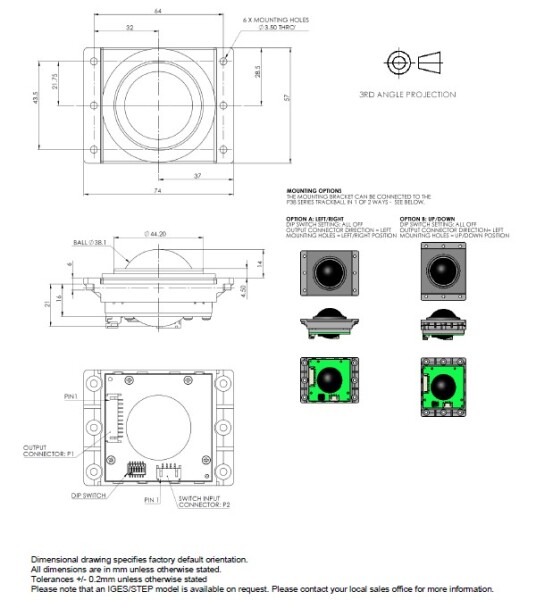

The unit has been designed to be back of panel mounted as part of OEM keyboards and consoles.
Features
- Sealing options up to IP65 (BS EN 60529)
- Outputs: USB & PS/2 (auto-select) and TTL Quadrature
- Smooth operation in rugged environments
- Stainless steel shaft and bearings
- Various top plate configurations providing sealing and tracking force options
- Custom connector options
- VX3™ – integrated zoom feature for scroll wheel functionality
- Optional anti-vandal kit (please contact sales for more information)
Typical Applications
- Control systems
- Kiosks
- Medical systems
- Navigation systems
- Compact keyboards
- Sound and lighting desks
- Industrial consoles
- OEM custom solutions available
