P38 Compact Backlit
The P38 Compact Series are high specification, professional trackballs for use in demanding environments.

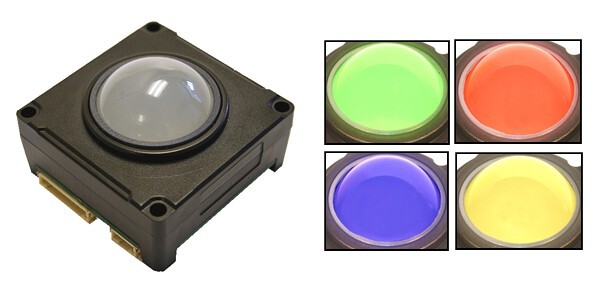

The device is available in a variety of backlit ball colours including blue, green, red, white and yellow.
High-grade stainless steel shafts and bearings ensure a solid and precise pointer control while the patented floating seal technology limits ingress of aqueous solutions and particulates.
A choice of top plate and chassis configurations are available to provide various options on sealing, backlighting, bezel diameters and installation.

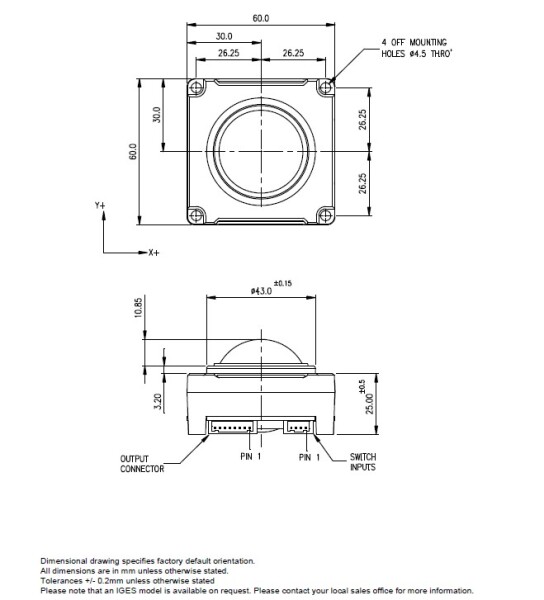

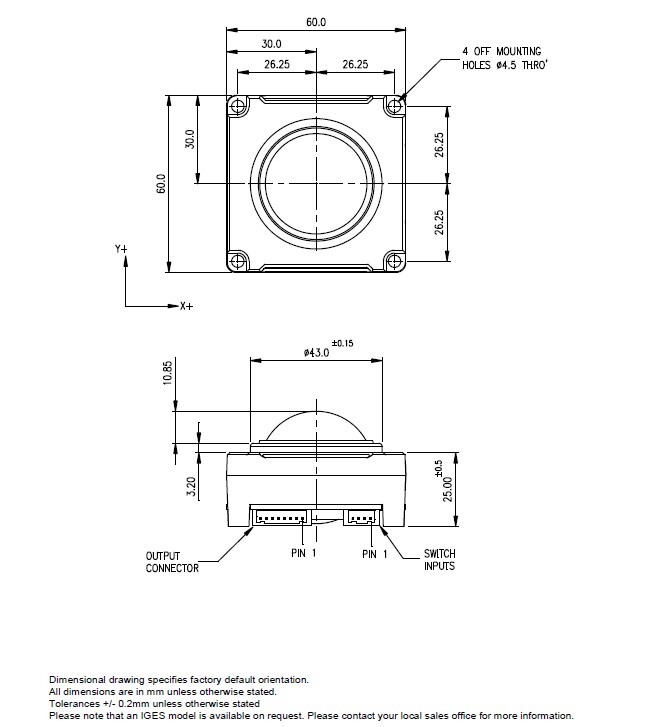

The unit has been designed to be back of panel mounted as part of OEM keyboards and consoles in low level light environments.
Features
- Sealing options up to IP65 (BS EN 60529)
- Outputs: USB & PS/2 (auto-select) and TTL Quadrature
- Backlit ball – various colours available
- Smooth operation in rugged environments
- Stainless steel shaft and bearings
- Various top plate configurations providing sealing and tracking force options
- Custom connector options
- Optional anti-vandal kit
- External switch connections (USB & PS/2 Only)
Typical Applications
- Control systems
- Medical systems
- Navigation systems
- Compact keyboards
- Industrial consoles
- OEM custom solutions available
