P50 RGB Backlit

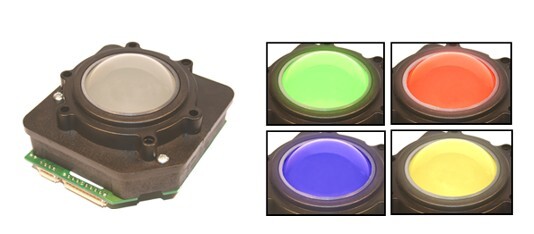

The P50 RGB mechanical trackball is a high specification module which offers complete independent control of the integrated RGB LEDs to provide various options for ball illumination colour/intensity. The P50 RGB trackball is also available with a variety of electrical outputs and sealing options up to IP65.
This popular unit provides a smooth running solution for general control applications where precise cursor control is required at all times.
Manufactured using high grade stainless steel and plastic components, and incorporating the latest format of floating sealing technology, the P50 RGB trackball will provide many years of reliable cursor control for industrial, medical and keyboard applications.
The P50 RGB trackball has been designed to be back panel mounted as part of OEM keyboards and consoles for use in low light level environments.
Features
- Sealing up to IP65 (BS EN 60529)
- Outputs: USB & PS/2
- RGB LED illuminated ball - independent colour/intensity control
- Smooth operation in rugged environments
- Various top plate configurations providing sealing and tracking force options
- High grade stainless steel shaft and bearings
- Custom connector options
- VX3™ – integrated zoom feature for scroll wheel functionality
Typical Applications
- Control systems
- Medical systems
- Marine systems
- Navigation systems
- Sound and lighting desks
- Industrial consoles
- OEM custom solutions available
