X19 Trackball
Utilizing the latest and most advanced laser tracking technology, the X19 Series laser Trackerball™ is an extremely
high specification, contact-less device, ideal for the most demanding of cursor control applications.
The laser tracking engine provides accurate cursor motion at all speeds, combining the benefits of solid state sensing
(no moving parts except the ball) with the aesthetics, functionality and performance associated with the Cursor Controls
product range.
The design incorporates a removable top ring as standard to allow for easy cleaning, decontamination, sterilisation and
maintenance - ensuring continued optimum performance and operation under the harshest of conditions.
The X19 series trackballs are available with a variety of electrical outputs, tracking force options, and sealing capabilities
up to IP68.

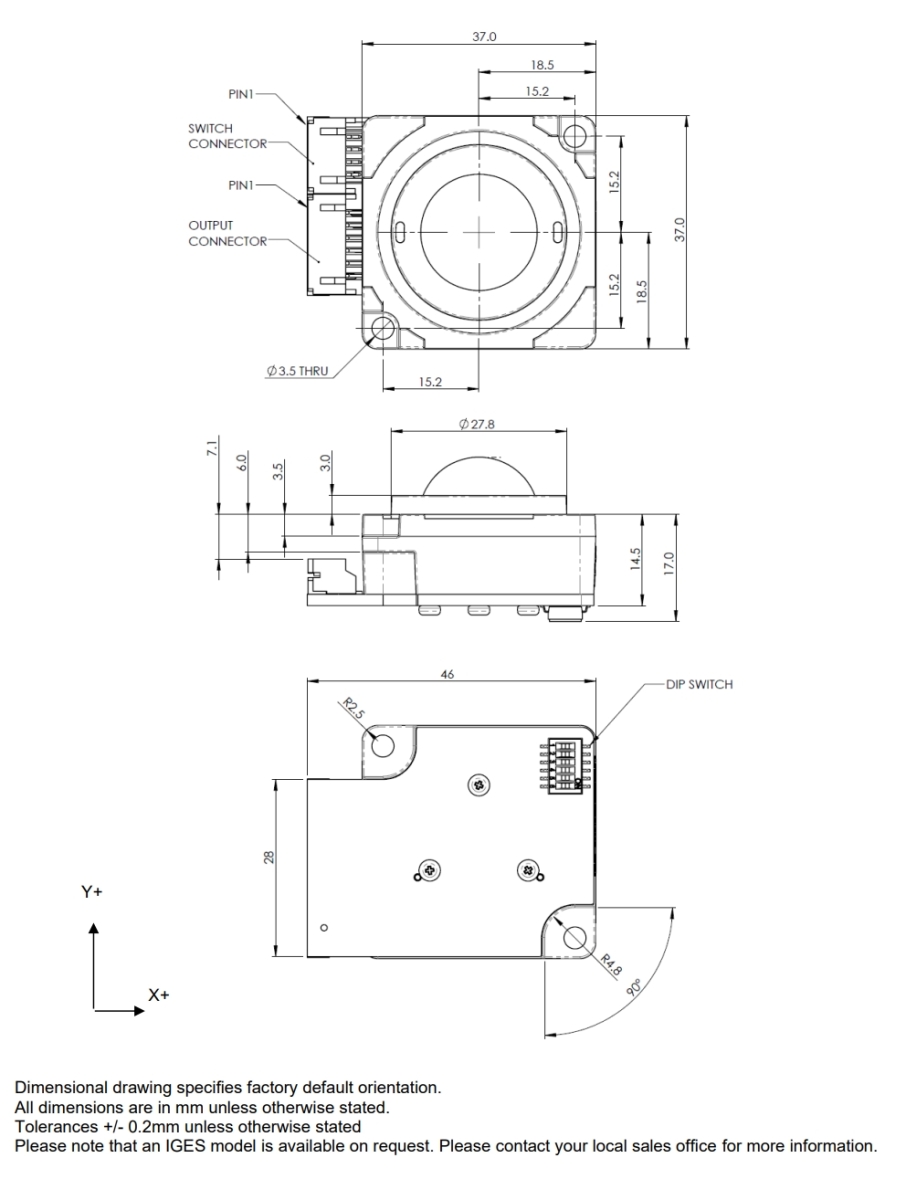

The trackball has been designed to be back of panel mounted as part of OEM keyboards and consoles
Features
• Solid state sensing technology – laser tracking engine (Generation II)
• Sealing up to IP68
• Output: USB & PS2 (auto-select)
• Smooth operation in rugged environments
• Various top plate configurations
• Custom connector options available
• VX3™ – integrated zoom feature for scroll wheel functionality
- External Switch Connections (USB/PS2 only)
Typical Applications
• Medical systems
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions available
• External Switch Connections (USB/PS2 only)
