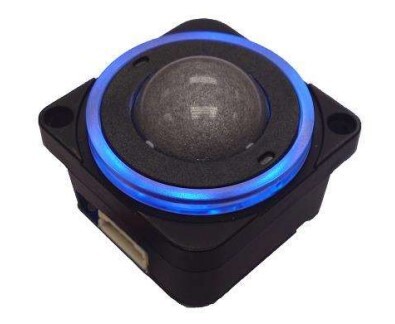

X25 Halo Trackball
Utilizing the latest and most advanced laser tracking technology, the X25 HALO Series laser Trackerball™ is an
extremely high specification, contact-less device, ideal for use in low level light environments where accurate cursor
control is critical.
The trackball incorporates an illuminated ring around the ball to enable the user to locate the trackball in low light
environments and offers an ideal solution for applications where a backlit ball would be too obtrusive. The HALO
feature can also be used to compliment other backlit features incorporated within a user interface panel and is
available in a wide range of colours.
The laser tracking engine provides accurate cursor motion at all speeds, combining the benefits of solid state sensing
(no moving parts except the ball) with the aesthetics, functionality and performance associated with the Cursor
Controls product range.
The design also incorporates a removable top ring as standard to allow for easy cleaning, decontamination,
sterilisation and maintenance - ensuring continued optimum performance and operation under the harshest of
conditions.
The X25 HALO Series trackballs are available with a variety of electrical outputs, tracking force options, and sealing
capabilities up to IP68.

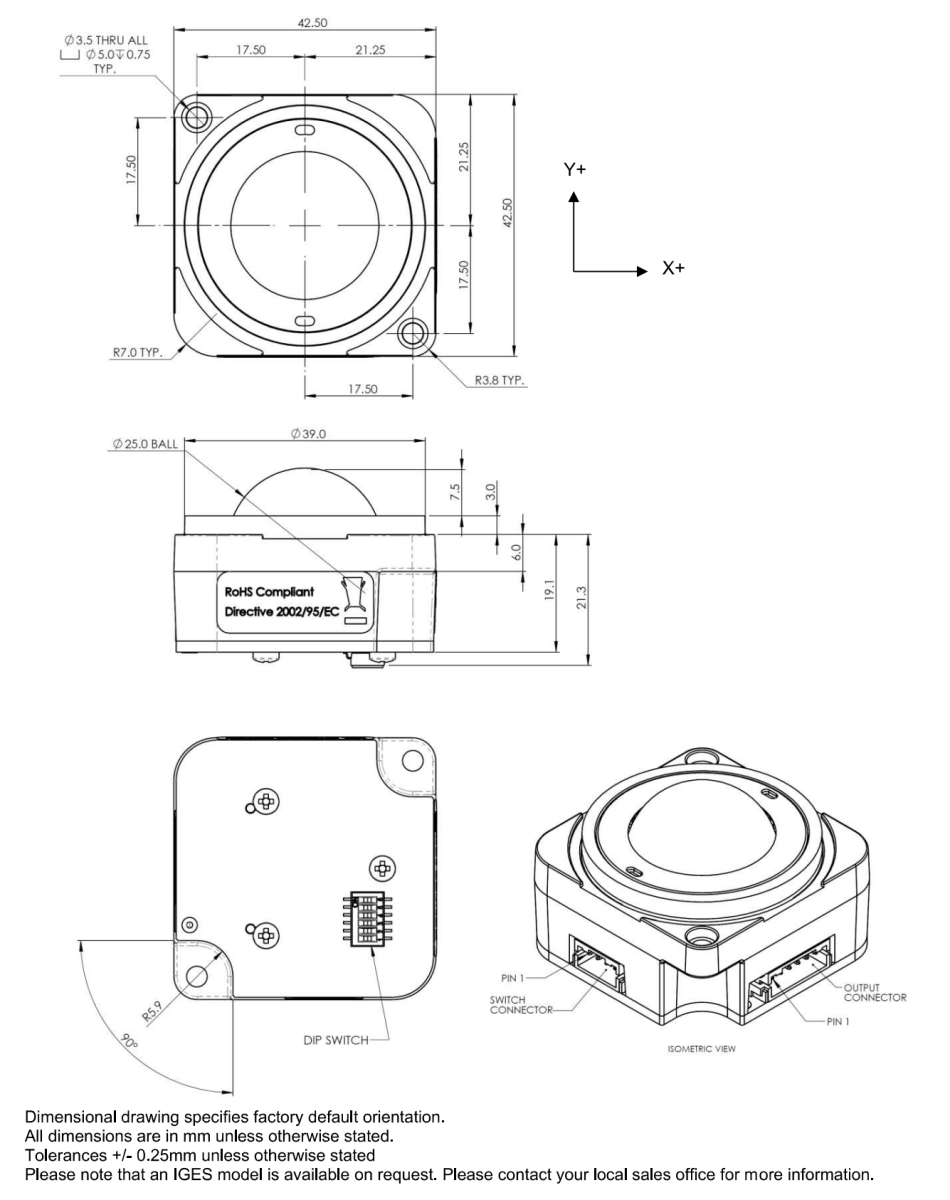

The trackball has been designed to be back of panel mounted as part of OEM keyboards and consoles.
Features
- Solid state sensing technology – laser tracking engine (Generation II)
- HALO light feature – various colours available
- Sealing up to IP68
- Outputs: USB & PS2 (auto-select)
- Smooth operation in rugged environments
- Various top plate configurations
- Custom connector options available
- Various ball colours available
- VX3™ – integrated zoom feature for scroll wheel functionality
- External Switch Connections (USB/PS2 only)
Typical Applications
• Medical systems
• Sound and lighting consoles
• Video editing consoles
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions available
