X38 Standard Trackball
Utilizing the latest and most advanced infrared optical tracking technology, the X38 Series optical Trackerball™ is an
extremely high specification, contact-less device, ideal for the most demanding of cursor control applications.
The optical tracking engine provides accurate cursor motion at all speeds and on virtually any ball, combining the
benefits of solid-state sensing (no moving parts except the ball) with the aesthetics, functionality and performance
associated with the Cursor Controls product range.

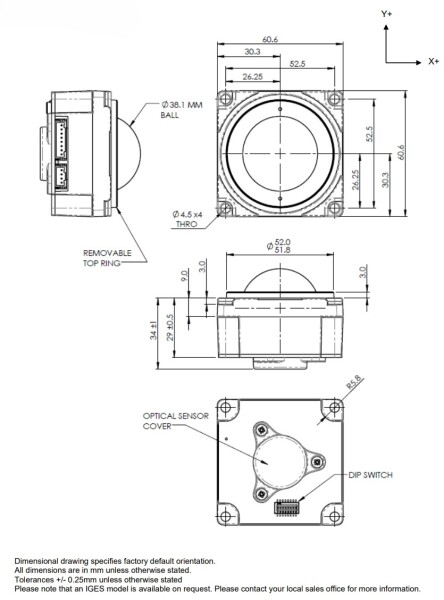

The design incorporates a removable top ring as standard to allow for easy cleaning, decontamination, sterilisation
and maintenance - ensuring continued optimum performance and operation under the harshest of conditions.
The X38 series trackballs are available with a variety of electrical outputs, tracking force options, and sealing
capabilities up to IP68.
The trackball has been designed to be back of panel mounted as part of OEM keyboards and consoles.
Features
• Solid state sensing technology – infrared optical tracking engine (Generation II)
• Sealing up to IP68
• Outputs: USB & PS2 (auto-select)
• Smooth operation in rugged environments
• Various top plate configurations
• Custom connector options available
• Various ball colours available
• VX3™ – integrated zoom feature for scroll wheel functionality
• External Switch Connections (USB/PS2 only)
Typical Applications
• Medical systems
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions available
