X50 Halo Trackball

Utilizing the latest and most advanced infrared optical tracking technology, the X50 HALO Series optical Trackerball™
is an extremely high specification, contact-less device, ideal for use in low level light environments where accurate
cursor control is critical.

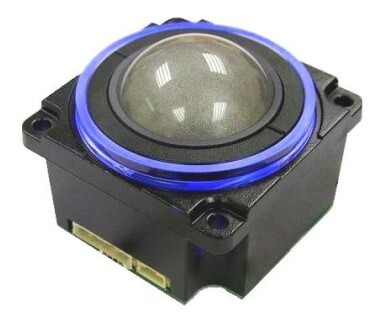

The trackball incorporates an illuminated ring around the ball to enable the user to locate the trackball in low light
environments and offers an ideal solution for applications where a backlit ball would be too obtrusive. The HALO
feature can also be used to compliment other backlit features within the user interface pane and is available in a wide
range of colours.
The optical tracking engine provides accurate cursor motion at all speeds and on virtually any ball, combining the
benefits of solid-state sensing (no moving parts except the ball) with the aesthetics, functionality and performance
associated with the Cursor Controls product range.
The design incorporates a removable top ring as standard to allow for easy cleaning, decontamination, sterilisation and
maintenance - ensuring continued optimum performance and operation under the harshest of conditions.
The X50 HALO series trackballs are available with a variety of electrical outputs, tracking force options, and sealing
capabilities up to IP68.

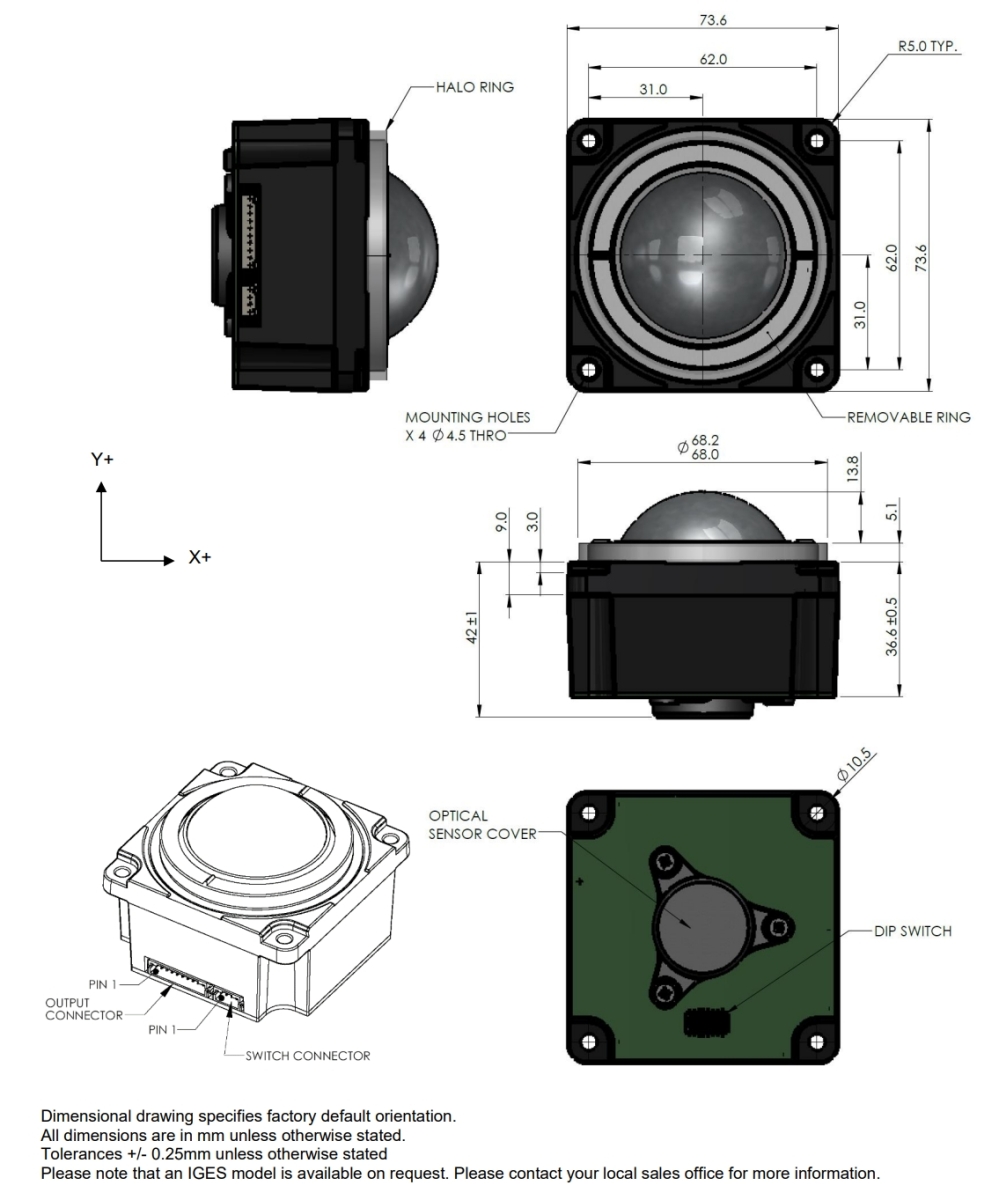

The trackball has been designed to be back of panel mounted as part of OEM keyboards and consoles.

• Solid state sensing technology – infrared optical tracking engine (Generation II)
• HALO light feature – various colours available
• Sealing up to IP68
• Outputs: USB & PS2 (auto-select)
• Smooth operation in rugged environments
• Various top plate configurations
• Custom connector options available
• Various ball colours available
• VX3™ – integrated zoom feature for scroll wheel functionality

• External Switch Connections (USB/PS2 only)

• Medical systems
• Sound and lighting consoles
• Video editing consoles
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions available
