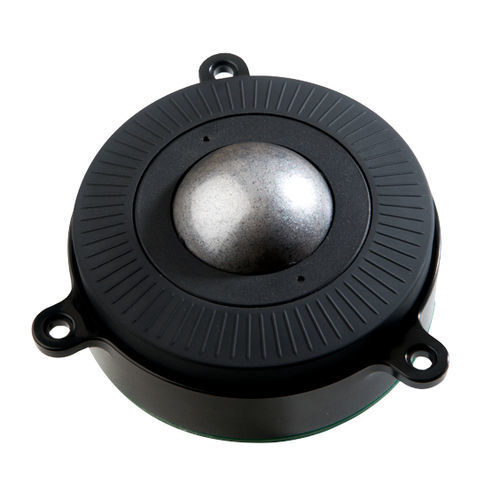

Z38 Trackball
Utilizing the latest and most advanced infrared optical tracking technology, the Z38 Series optical Trackerball™ is an
extremely high specification, contact-less device, ideal for the most demanding of cursor control applications.
The device provides both conventional X and Y-axis cursor movement with an additional Z-axis control wheel
surrounding the ball.
The optical tracking engine provides accurate cursor motion at all speeds and on virtually any ball, combining the
benefits of solid-state sensing (no moving parts except the ball) with the aesthetics, functionality and performance
associated with the Cursor Controls product range.
The Z38 series trackballs are available with a variety of electrical outputs and tracking force options.
The design incorporates a removable top ring as standard to allow for easy cleaning, decontamination, sterilisation
and maintenance - ensuring continued optimum performance and operation under the harshest of conditions.

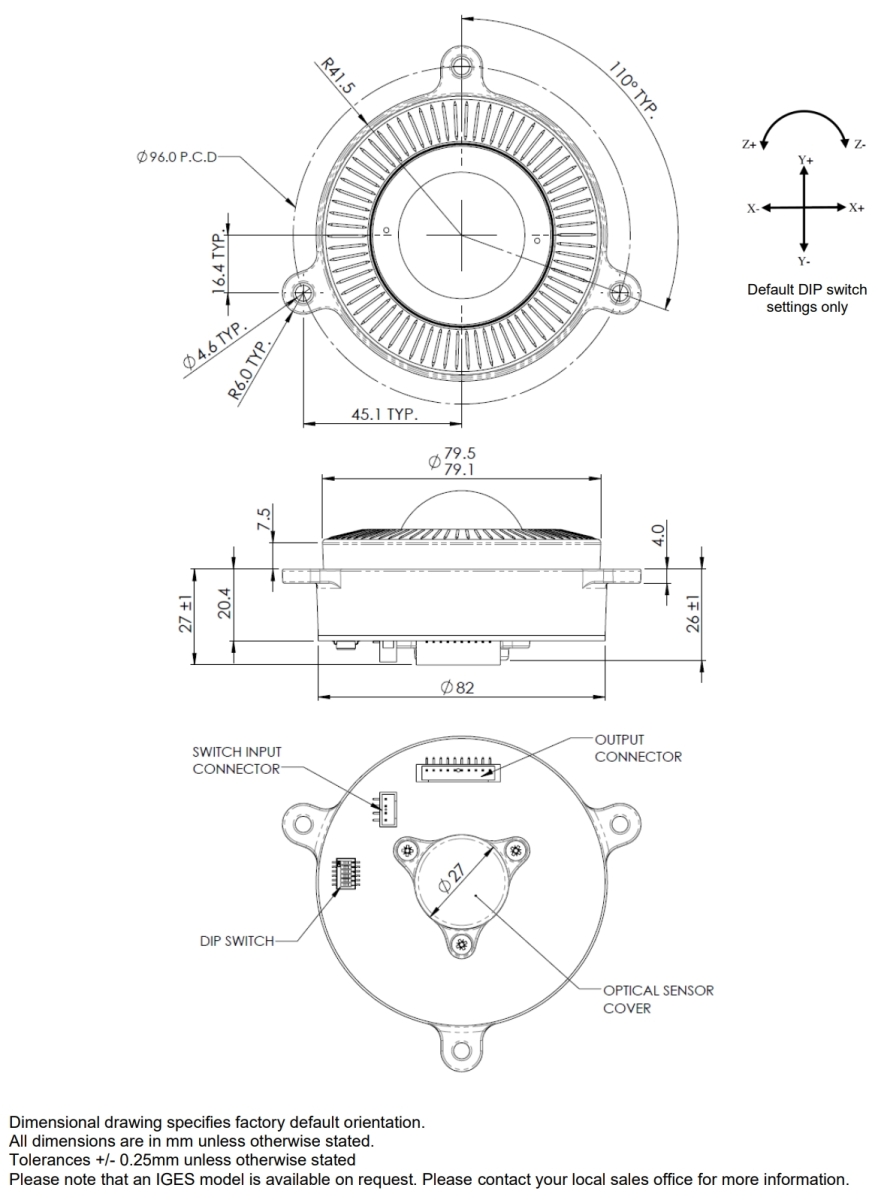

The unit has been designed to be back of panel mounted as part of OEM keyboards and consoles.
Features
- Solid state sensing technology – laser tracking engine
- Z-axis control wheel for scroll/zoom capability
- Output: USB/PS2 (auto-select) or TTL Quadrature
- Smooth operation in rugged environments
- Various top plate configurations available
- Custom connector options available
- Various ball colours
Typical Applications
- Sound and lighting desks
- Video editing consoles
- Medical systems
- Marine systems
- Custom keyboard applications
- Industrial consoles
- OEM custom solutions available
