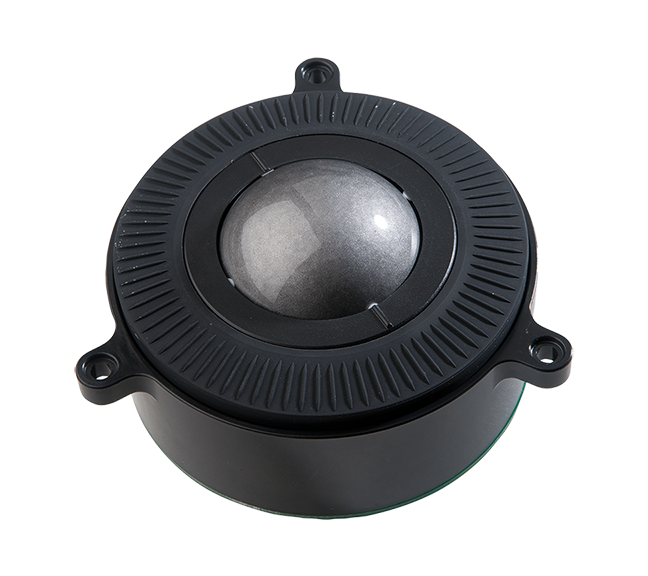

Z50 Trackball
Utilizing the latest and most advanced infrared optical tracking technology, the Z50 Series optical Trackerball™ is an
extremely high specification, contact-less device, ideal for the most demanding of cursor control applications.
The device provides both conventional X and Y-axis cursor movement with an additional Z-axis control wheel
surrounding the ball.
The optical tracking engine provides accurate cursor motion at all speeds and on virtually any ball, combining the
benefits of solid-state sensing (no moving parts except the ball) with the aesthetics, functionality and performance
associated with the Cursor Controls product range.
The Z50 series trackballs are available with a variety of electrical outputs and tracking force options.
The design incorporates a removable top ring as standard to allow for easy cleaning, decontamination, sterilisation
and maintenance - ensuring continued optimum performance and operation under the harshest of conditions.

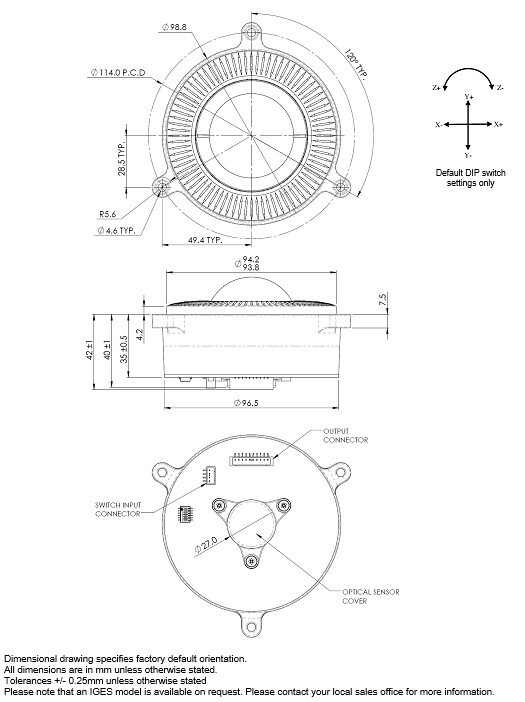

The unit has been designed to be back of panel mounted as part of OEM keyboards and consoles.
Features
• Solid state sensing technology – infrared optical tracking engine (Generation II)
• Z-axis control wheel for scroll / zoom capability
• Outputs: USB & PS2 (auto-select)
• Smooth operation in rugged environments
• Various top plate configurations available
• Custom connector options available
• Various ball colours available
Typical Applications
• Sound and lighting desks
• Video editing consoles
• Medical systems
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions available
